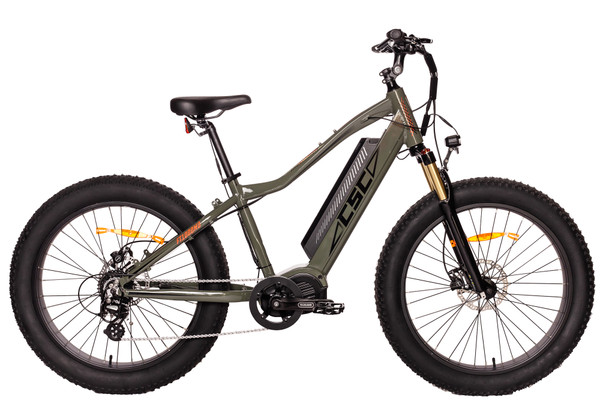

FT1000MD Mid-Drive Electric Bike - Moss

(4 reviews) Write a Review
$3,295.00
SKU:
FT1000MD-Moss
Availability:
Usually ships in 1-3 business days.
Shipping:
FREE SHIPPING to most locations in the lower 48.
  • Visa
  • Master
  • Amex
  • Discover
  • Diners Club
  • JCB

Product Overview

FT1000MD Mid-Drive Electric Bike

  • Service and Support

    Service & Support

    Excellent customer service and technical support from our expert technicians.

  • Warranty

    1-Year Warranty

    Every bicycle comes with a one-year unlimited mileage warranty.

  • OEM Replacement Parts

    Stock Replacement Parts

    We stock replacement parts for all of our bicycles down to the tiniest bolt.

  • Service Manual and Tutorials

    Online Maintenance Manuals

    We conveniently offer service manuals, bonus materials, and videos online for free to help you maintain your bike.



Bike Sizing & Weight


  • Bike Weight: 75.8 pounds
  • Max Weight Capacity: 265 pounds
  • Wheel Base: 47.24 inches
  • Total Length: 75.20 inches
  • Stand-over Height: 28.70 inches
  • Seat Height: 33.66 to 40.75 inches
  • Reach: 24.53 inches
  • Handlebar Width: 29.13 inches
  • Handlebar Height: 45.28 inches



  • Buchel Shiny 50 Headlight

    Buchel Shiny 50

    Integrated Buchel Shiny 50 lux luminosity LED Headlight operated from the display with nighttime sensor.

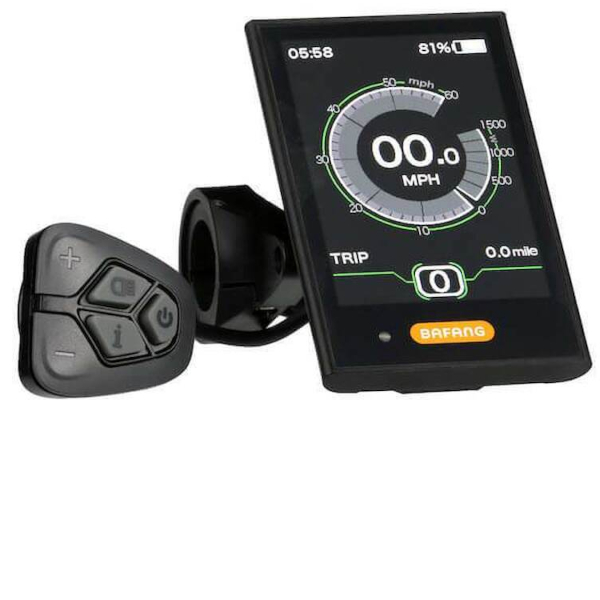

  • Bafang DPC-18 IP65 rated full color backlit display.

    Bafang DPC-18 Display

    Full color LCD digital IP65 rated display with speedometer, odometer, battery level, and customisable pedal assist level.

  • Adjustable steering stem

    Steering Stem

    0°-60° Adjustable angle steering stem.

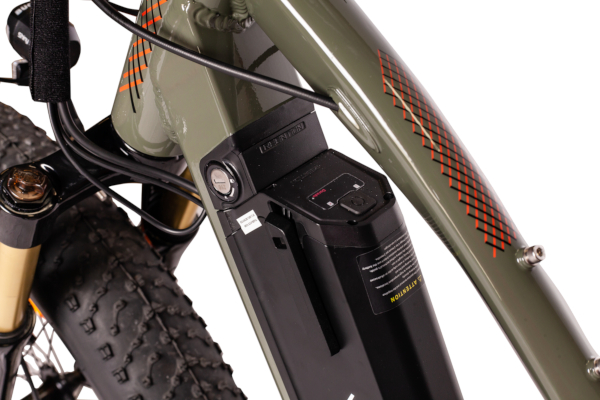

  • Lockable Battery with 2 Keys

    Lockable Battery

    Removable integrated battery system with two keys.

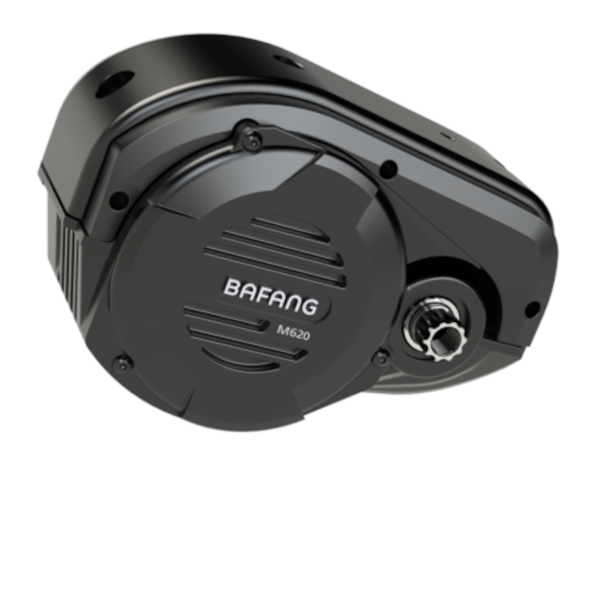

  • M620 Bafang Mid-Drive Motor

    M620 Bafang Motor

    1000 Watt Bafang mid-drive motor with 117.5 lb-ft (160 Newton-meters) of torque.

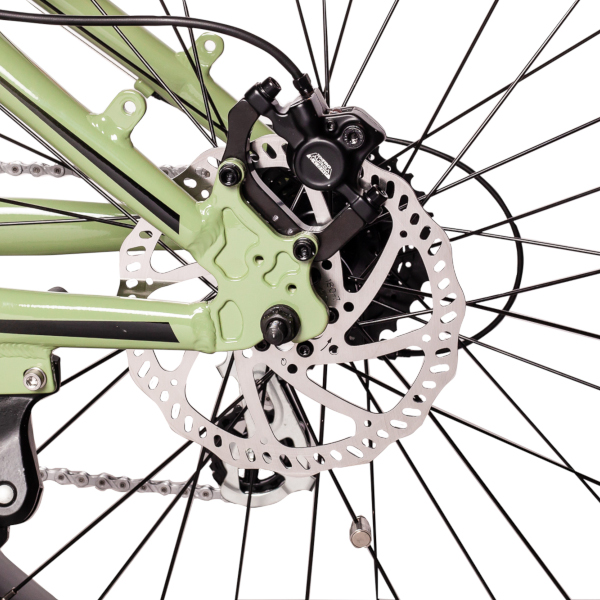

  • Tektro Brakes

    Tektro E-500 Brakes

    Front/Rear Tektro E-500 hydraulic brakes, twin-opposed-piston calipers with 7.1-inch (180mm) stainless steel discs.



The FT1000MD is CSC E-Bikes first mid-drive motor electric bicycle. This style of motor is used for higher efficiency and low power consumption to get the rider longer range. The maximum 160 N.m. of torque is excellent for hill climbs on mountain trails. You will also experience low noise, smooth operation and improved mileage over hub drive electric bike setups.

The FT1000MD is built around a lightweight aluminum alloy chassis. The lockable battery uses high-quality Lithium cells to deliver power to the 1000-watt Bafang mid-drive motor. Pedal-assist rates can be adjusted to five levels giving the rider from 25-75 miles of assisted pedaling. The thumb-operated throttle can power the FT1000MD to 20 mph (max speed for Class 2 electric bikes) without even pedaling and adding pedal power can boost maximum speed above 27 mph.

Premium quality components are used in the construction of the FT1000MD. CSC uses Bafang M620 motor, 6061 aluminum frame, Tektro E-500 hydraulic brakes, and huge 180mm stainless steel rotors for excellent stopping power.

Lightweight aluminum is also used for key components such as the pedals and crank, wheel rims, and tapered handlebar. Instrumentation is provided via the Bafang DPC-18 IP65 backlit LCD Display is the one of the newest and most updated displays with improved accuracy on the battery gauge. The full color LCD screen comes with an updated sleek speedometer design that allows the rider to easily view the time, power assist level, trip distance, speed, remaining battery and estimated available range. You can use the 5V 0.5 amp USB output port for charging a cell phone or other small electrical devices. The easy to use control pad makes turning the bicycle on or changing settings a breeze.

Thoughtful convenience and safety items are part of the FT1000MD package. LED headlights and taillights enhance rider conspicuity. The handy USB port is provided to power electronic devices. A protective cage is fitted over the derailleur to prevent drivetrain damage, and frame tabs are ready to mount rear fenders or racks.



FT1000MD Standard Features:

  • 1000 Watt Bafang M620 Mid-Drive Motor
  • Light weight alluminum alloy frame
  • Locakable semi-integrated 48V16Ah lithium battery, 768 Wh total battery capacity
  • Integrated speed & torque sensor
  • Tektro E-500 Auriga dual piston hydraulic brakes
  • Huge 180mm stainless steel rotor
  • Bafang DPC-18 IP65 rated full color backlit display
  • Easy-to-use control pad
  • 5V 0.5amp USB output for powering electronic devices
  • LED Hedlight & tail light
  • 8-Speed Shimano Altus derailleur
  • Gearshift Sensor To Protect The Drivetrain
  • Adjustable Angle steering stem, 0-60 degrees
  • Front suspension with 3.94" travel, with 8 levels of damping adjustment plus a lockout setting, and spring-preload adjustment
  • Maximum Weight Capacity 265lbs

Specifications

Frame:
18" 6061 Aluminum Alloy
Front Fork:
Hydraulic Suspension Fork, Guide-26-TNL
Head Parts:
Aluminum Alloy
Saddle:
Black Comfort
Saddle Post:
Aluminum Alloy
Seat Post:
Aluminum Alloy
Handlebars:
Aluminum Alloy
Stem:
Aluminum Alloy
Grips:
Black
Brake Lever:
Tektro HD-E500 Hydarulic Disc Brake With Sensor Control Design
Brake:
Tektro Hydraulic Brakes With 180mm Diameter Stainless Steel Front & Rear Brake Rotor
Freewheel:
SHIMANO Altus 8 Speed, 11-32T
Chain:
Stainless Steel KMC
Crank Set:
40T 170MM
Pedal:
Aluminum Alloy with reflector
Shifter:
SHIMANO Altus 8 speed
Derailleur:
SHIMANO Altus 8 speed
Front Hub:
Aluminum Alloy
Rim:
26" x 4" Double Wall
Spokes:
13G
Rim:
Kenda 26" x 4" with Tubes
Bike Weight with Battery:
75.8 lbs
Battery Weight:
9.2 lbs
Throttle:
Thumb Throttle
Display:
Bafang DPC18 Color Display 0-5 PAS
Motor:
Bafang M620 48V1000W Mid Motor, with speed and torque integrated sensor
Controller:
Bafang 48 volt, 28 AMP
Battery:
Removable Panasonic 18650 35E 3500mAH, lithium NCA (LiNiCoAlO2)
Battery Specs:
48 volts, 16 amp-hours, 768 watt-hours
Display:
Bafang DPC18 Color Display 0-5 PAS
Charger:
48V 2.0A AC100-240V CE/FC/UL ROHS DC2.1 US Standard
Lights:
Front and Rear LED
Top Speed:
28mph pedal assist and 20mph throttle
Torque:
160Nm

Physical Dimensions

Frame
18" 6061 Aluminum Alloy
Front Fork
Hydraulic Suspension Fork, Guide-26-TNL
Head Parts
Aluminum Alloy
Saddle
Black Comfort
Saddle Post
Aluminum Alloy
Seat Post
Aluminum Alloy
Handlebars

Handlebars
Aluminum Alloy
Stem
Aluminum Alloy
Grip
Black
Brakes

Brake Lever
Tektro HD-E500 Hydarulic Disc Brake With Sensor Control Design
Brake
Tektro Hydraulic Brakes With 180mm Diameter Stainless Steel Front & Rear Brake Rotor
Gears

Freewheel
SHIMANO Altus 8 Speed, 11-32T
Chain
Stainless Steel KMC
Crank Set
40T 170MM
Pedal
Aluminum Alloy with reflector
Shifter

Shifter
SHIMANO Altus 8 speed
Derailuer
SHIMANO Altus 8 speed
Wheels & Tires

Front Hub
Aluminum Alloy
Rim
26" x 4" Double Wall
Spokes
13G
Rim
Kenda 26" x 4" with Tubes
Weights

Bike Weight with Battery
75.8 lbs
Battery Weight
9.2 lbs
Electronics

Throttle
Thumb Throttle
Display
Bafang DPC18 Color Display 0-5 PAS
Motor
Bafang M620 48V1000W Mid Motor, with speed and torque integrated sensor
Controller
Bafang 28 AMP
Battery 48V/16Ah Lithium Battery
Display
Bafang DPC18 Color Display 0-5 PAS
Charger
48V 2.0A AC100-240V CE/FC/UL ROHS DC2.1 US Standard
Lights
Front and Rear LED
Top Speed
28mph pedal assist and 20mph throttle

Warranty Information

12 Month Warranty
